Nguồn gốc:
Sản xuất tại trung quốc
Hàng hiệu:
Belparts
Số mô hình:
DX225 DX260

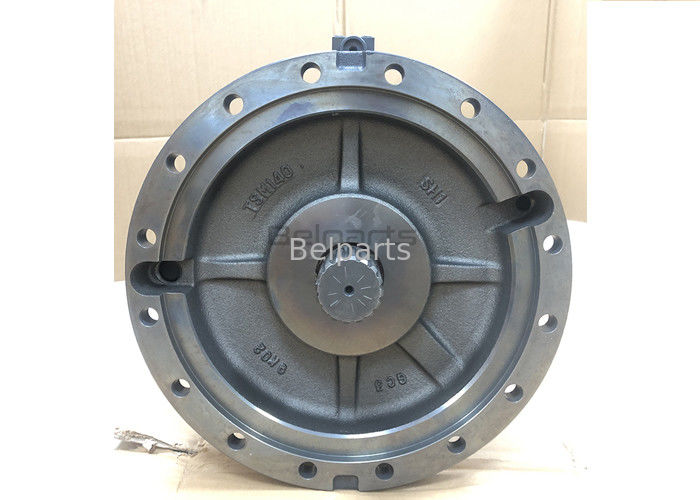

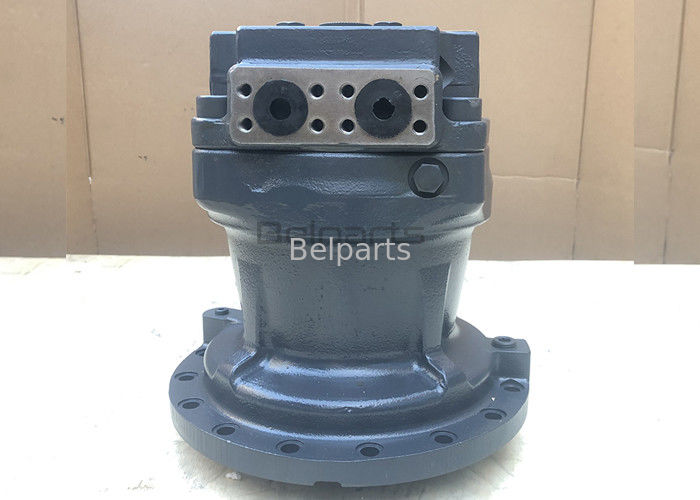

Excavator hydraulic rotary motor DX225 DX260 170303-00052A swing motor
|
Appliion |
Excavator |
|
Part name |
Belparts swing motor |
|
Material |
Steel |
|
Model |
DX225 |
|
MOQ |
1PC |
|
Payment term |
T/T, Paypal, Trade assurance, or as required |
|
Delivery |
2 days after the payment received |
|
Shipment |
by sea, by air, by express, or as required |
List of spare part
| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| - | K1000697A | MOTOR, SWING | 64 kg | 1 | |
| 101 | *NA00351 | CASING, VALVE | 1 | ||
| 102 | 2.121-00009 | PLUG | 2 | ||
| 103 | K9001840 | SPRING | 2 | ||
| 104 | K9001841 | PLUNGER | 2 | ||
| 105 | 1.420-00016 | VALVE, SWING REACTIONLESS | 1 kg | 1 | |
| 106 | S8000341 | O-RING | E6300761 | 2 | |
| 107 | 1.420-00111 | VALVE, RELIEF | 1 kg | 2 | |
| 108 | S6005050 | BEARING, BALL | 1 | ||
| 109 | S2227561 | BOLT, HEX SOCKET HEAD | 4 | ||
| 110 | 2181-1950D1 | PLUG, RECHECK | 2 | ||
| 111 | S8000111 | O-RING | 1BP11 | 2 | |
| 112 | K9001842 | O-RING | 1 | ||
| 113 | S5741162 | PIN, SPRING | D8X16L | 2 | |
| 201 | K9001843 | SHAFT, DRIVE | 3 kg | 1 | |
| 202 | K9001844 | PLATE, SWASH | 3 kg | 1 | |
| 203 | K9001845 | PISTON & SHOE ASS`Y | 1 SET | ||
| 205 | K9001846 | BLOCK, CYLINDER | 5 kg | 1 | |
| 206 | 1.148-00015 | BALL, THRUST | 1 | ||
| 207 | 1.412-00092 | PLATE, RETAINER | 1 | ||
| 208 | 1.114-00009 | COLLAR, WASHER | 1 | ||
| 209 | 1.109-00134 | BEARING, ROLLER | 5 | ||
| 210 | 1.114-00286 | WASHER | 2 | ||
| 211 | 1.131-00048 | SPRING | 1 | ||
| 212 | S6510620 | RING, RETAINING | 1 | ||
| 213 | K9001847 | PLATE, TIMING | 1 kg | 1 | |
| 301 | K9001848 | CASING | 22 kg | 1 | |
| 302 | 180-00219 | SEAL, OIL | 1 | ||
| 303 | S6005090 | BEARING, BALL | 1 kg | 1 | |
| 304 | 1.123-00053 | PIN, PARALLEL | 1 | ||
| 305 | 352-00014 | SEPARATOR PLATE(S/M) | 3 | ||
| 306 | 412-00013 | PLATE, FRICTION | 2 | ||
| 307 | 180-00220 | O-RING | 1 | ||
| 308 | 180-00221 | O-RING | 1 | ||
| 309 | 452-00020 | PISTON, BRAKE | 3 kg | 1 | |
| 310 | 129-00062 | SPRING, BRAKE | 18 | ||
| 311 | 181-00346 | PLUG, PT | 1 | ||
| 312 | 2181-1116D2 | PLUG, RECHECK | 1 | ||
| 313 | 2181-1950D1 | PLUG, RECHECK | 1 | ||
| 314 | S8000111 | O-RING | 1BP11 | 1 | |
| 400 | 420-00110 | VALVE, BRAKE | 1 kg | 1 | |
| * | K9001903 | SEAL KIT, SWING MOTOR | 1 |
