Nguồn gốc:
Trung Quốc
Hàng hiệu:
Belparts
Chứng nhận:
CE
Số mô hình:
SK60
| Application | Excavator |
|---|---|

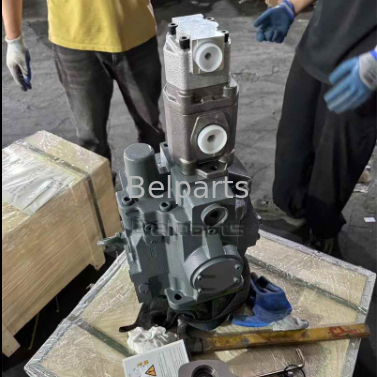

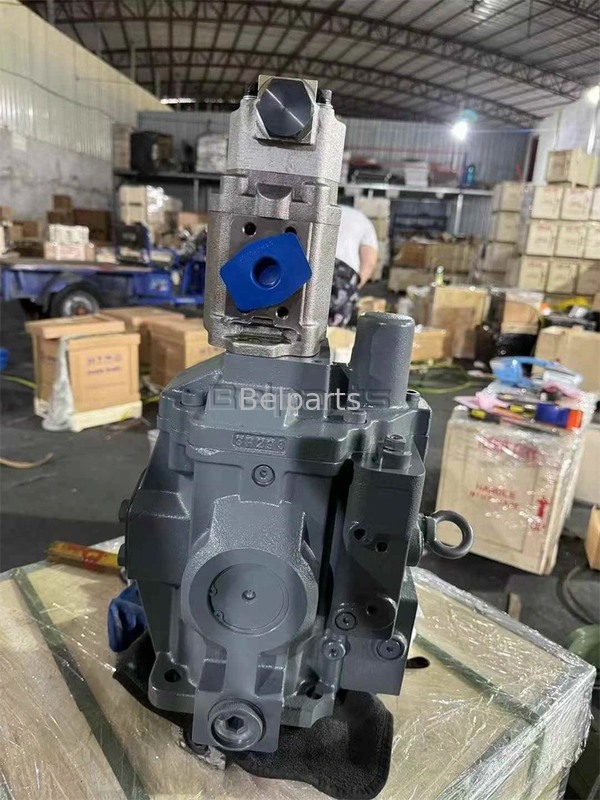

| Part name | Hydraulic Main pump |
| Type | Rexroth A10vd43 |
| Machine model | Sk60 |
| Part number | 2437U486F1 |
| Warranty | 12 months |
| Delivery time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Made in China |
| MOQ | 1 Piece |
| Payment term | T/T, Trade Assurance, Paypal and et |
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| .. | 2437U486F1 | [1] | PUMP | KOB |
| 2 | 2416R481F1 | [1] | HANGER | KOB |
| 1 | 2480U328F1 | [1] | CONTROL | KOB |
| 3 | 24100R232F1 | [2] | ROTARY DIVIDER | KOB |
| 4 | 2414R430F1 | [1] | COVER ASSY | |
| 5 | 2410R335F1 | [1] | CASE | KOB |
| 5 - 1. | NSS | [1] | NOT SOLD SEPARAT | CON CASE |
| 5 - 2. | ZR26X06200 | [1] | SNAP RING | KOB |
| 5 - 3. | NSS | [1] | NOT SOLD SEPARAT | CON OIL SEAL |
| 5 - 4. | 2410R335S4 | [1] | O - RING | KOB |
| 6 | 2437U386F1 | [1] | PUMP | HIT |
| 7 | NSS | [1] | NOT SOLD SEPARAT | CON SHAFT |
| 8 | 2437U390S8 | [1] | CONTACT PLATE | KOB |
| 9 | NSS | [1] | NOT SOLD SEPARAT | CON BEARING |
| 10 | 2414R268S3 | [2] | PIN | |
| 11 | 2437U390S11 | [1] | SHIM | KOB SHIM |
| 12 | ZR16X02800 | [1] | SNAP RING | KOB |
| 13 | 2437U390S13 | [1] | PLUG | |
| 14 | ZD12P01100 | [1] | O - RING | KOB ID 10.8mm x OD 13.2mm |
| 15 | NSS | [1] | NOT SOLD SEPARAT | CON NAME PLATE |
| 15 - 1. | NSS | [2] | NOT SOLD SEPARAT | CON SCREW |
Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.
If possible, you can send us pictures of old products, nameplate or the size for reference.
The warranty is 6/12 Months based on the item details.
We can receive payment through T/T, Western Union, Paypal(for small amount), Alibaba trade assurance.
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
First of all, I have confidence in the quality of our products, if you really found something wrong, please provide pictures for us and we will check. After it is confirmed, please return to us, we will offer the correct item.
We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
