Nguồn gốc:
Trung Quốc
Hàng hiệu:
Belparts
Chứng nhận:
CE
Số mô hình:
DX300LC DX300LC-7
| Application | Excavator |
|---|---|

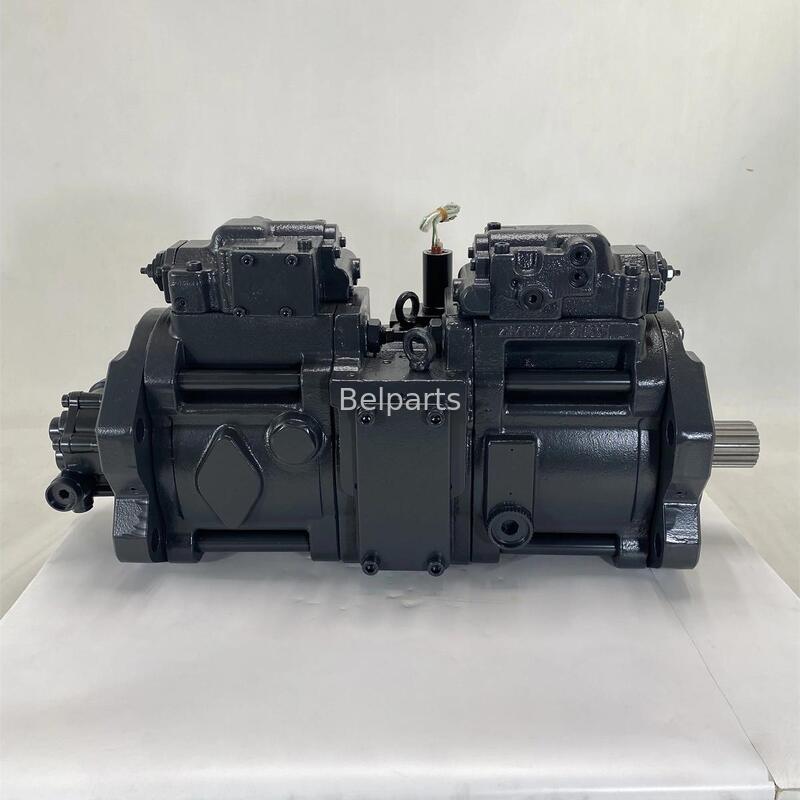

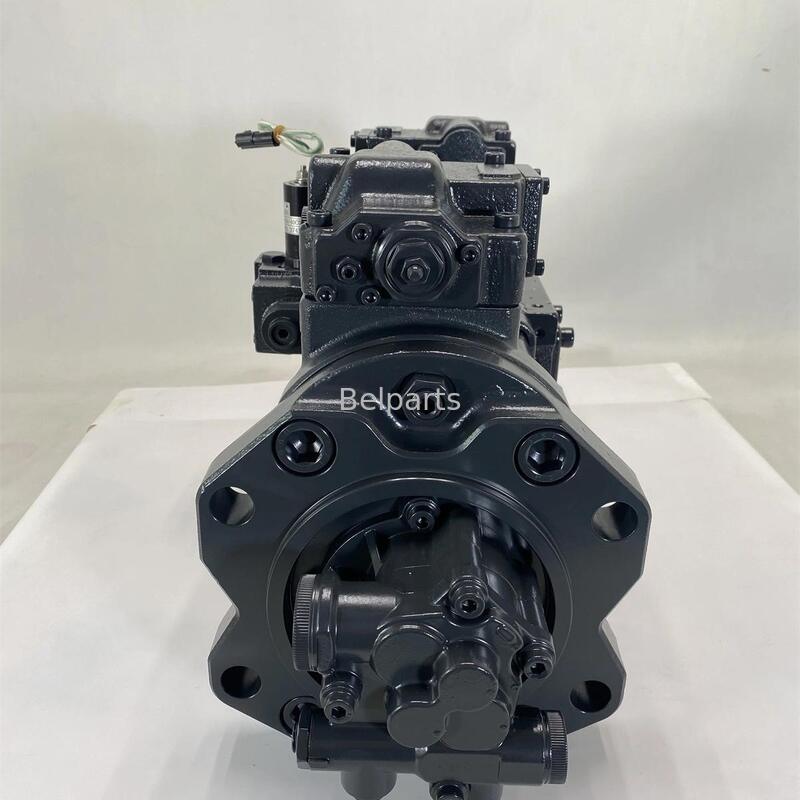

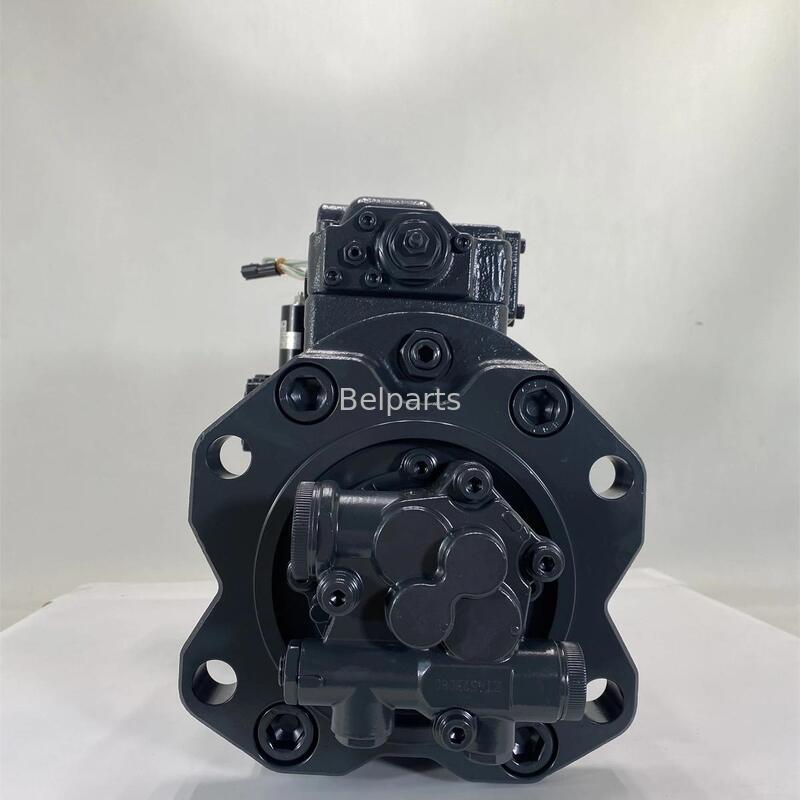

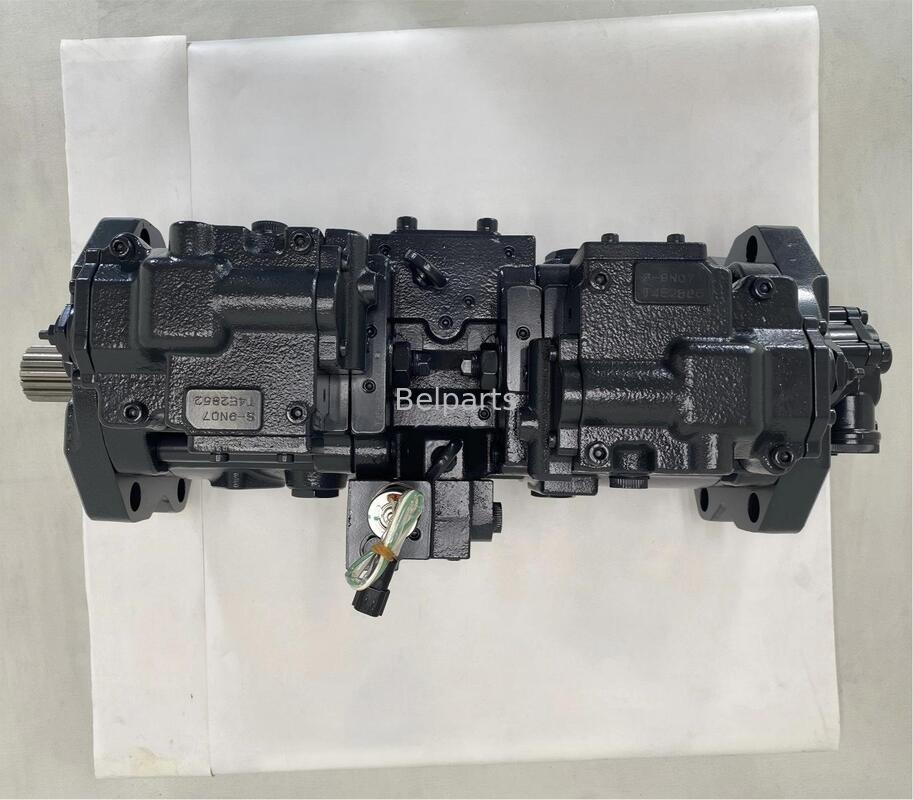

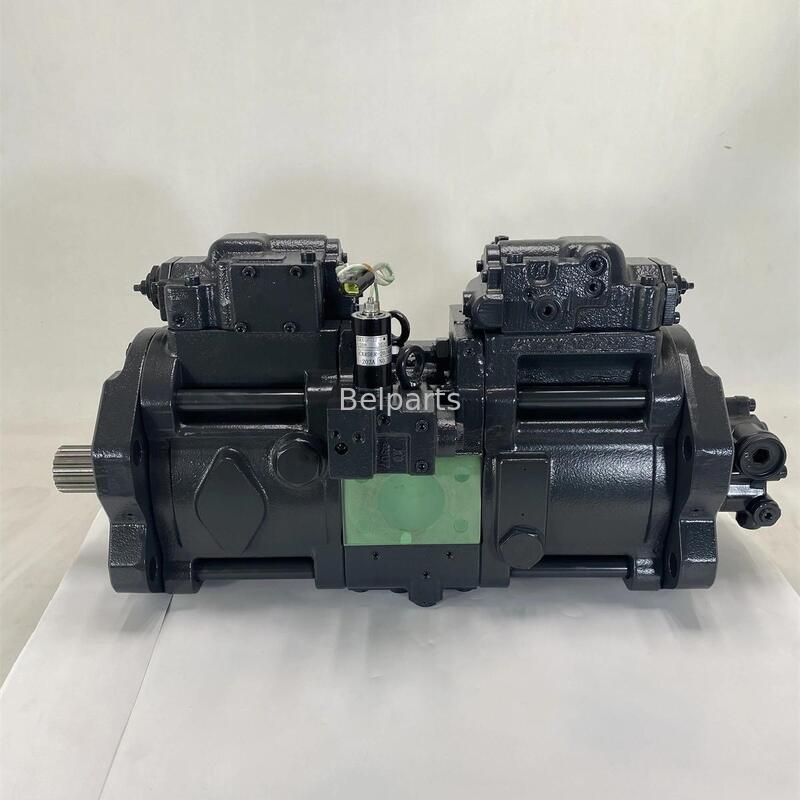

| Part name | Hydraulic pump |
| Machine model |
DX300LC DX300LC-7 |
| Part number |
K5V140DTP-9N07-17T |
| Part number | K1006550 K1006550A K1006550B K1006550C 400914-00393A 400914-00393 |
| Warranty | 12 months |
| Delivery time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Made in China OEM / High Quality |
| MOQ | 1 Piece |
| Payment term | T/T, Trade Assurance, Paypal and etc |
| Category | Construction Machinery Part |
| # | Part No. | Description | Qty |
|---|---|---|---|
| - | K1006550 | PUMP, MAIN | 1 |
| - | K1006550A | PUMP, MAIN | 1 |
| - | K1006550B | PUMP, MAIN | 1 |
| - | K1006550C | PUMP, MAIN | 1 |
| 111 | 1.405-00055 | SHAFT, DRIVE(F) | 1 |
| 113 | 1.405-00057 | SHAFT, DRIVE(R) | 1 |
| 116 | 1.403-00004 | GEAR, 1st | 1 |
| 123 | 1.109-00111 | BEARING, ROLLER | 2 |
| 124 | 1.109-00055 | BEARING, NEEDLE | 2 |
| 127 | 2.109-00228 | SPACER, BEARING | 3 |
| 13 | 1.451-00065 | CYLINDER ASS`Y(R) | 1 |
| 13 | K9006419 | CYLINDER ASS`Y(R) | 1 |
| 14 | 1.451-00062 | CYLINDER ASS`Y(L) | 1 |
| 14 | K9006420 | CYLINDER ASS`Y(L) | 1 |
| 11 | K9006418 | PISTON ASS`Y | 2 |
| 153 | 1.412-00098 | PLATE, SET | 2 |
| 156 | 1.110-00101 | BUSH , SPHERICAL | 2 |
| 157 | 1.131-00131 | SPRING, CYLINDER | 18 |
| 211 | 1.412-00110 | PLATE, SHOE | 2 |
| 30 | K9001176 | SWASH PLATE ASS`Y | 2 |
| 212 | K9001177 | PLATE, SWASH | 1 |
| 214 | 2.408-00088 | BUSH, TILTING | 1 |
| 80 | K9001178 | PROPORTIONAL REDUCING VALVE | 1 |
| 79 | K9001179 | E.P.P.R VALVE | 1 |
| 79-1 | 2180-1217D13 | O-RING | 1 |
| 79-2 | 2180-1217D14 | O-RING | 1 |
| 79-3 | 2180-1217D15 | O-RING | 1 |
| 325 | 1.402-00097 | CASING, VALVE | 1 |
| 407 | S2205861 | BOLT, HEX SOCKET HEAD | 3 |
| 466 | 2181-1950D1 | PLUG, RECHECK | 1 |
| 490 | 2.181-00214 | PLUG | 3 |
| 725 | S8000115 | O-RING | 4 |
| 732 | S8000165 | O-RING | 1 |
| 251 | K9001180 | SUPPORT | 2 |
| 261 | 1.430-00213 | COVER, SEAL(F) | 1 |
| 271 | 2.423-00114 | CASING, PUMP | 2 |
| 312 | K9001181 | BLOCK, VALVE | 1 |
| 326 | K9001182 | COVER, SEAL(F) | 1 |
| 401 | S2229071 | BOLT SOCKET | 8 |
| 406 | S2208871 | BOLT HEX SOCKET HD CL | 4 |
| 414 | S2211861 | BOLT, SOCKET M10X1.5X20 | 4 |
| 466 | 2181-1950D1 | PLUG, RECHECK | 2 |
| 467 | 2181-1950D2 | PLUG, RECHECK | 2 |
| 468 | 2181-1950D5 | PLUG, RECHECK | 4 |
| 490 | 2.181-00214 | PLUG | 32 |
| 530 | 1.123-00089 | TILTING PIN ASS`Y | 2 |
| 531 | 1.123-00090 | PIN, TILTING | 1 |
| 548 | 2.123-00154 | PIN, FEED BACK | 1 |
| 532 | 1.409-00209 | PISTON | 2 |
| 534 | 1.416-00020 | STOPPER(L) | 2 |
| 535 | 1.416-00021 | STOPPER(S) | 2 |
| 41 | K9001183 | CHECK VALVE ASS`Y(1) | 2 |
| 541 | K9001184 | SEAT | 2 |
| 543 | K9001185 | STOPPER, 1 | 2 |
| 545 | S6250132 | BALL, STEEL | 2 |
| 42 | K9001186 | CHECK VALVE ASS`Y(2) | 2 |
| 541 | K9001184 | SEAT | 2 |
| 544 | K9001187 | STOPPER, 1 | 2 |
| 545 | S6250132 | BALL, STEEL | 2 |
| 702 | S8010355 | O-RING G35 | 2 |
| 710 | S8010955 | O-RING | 2 |
| 717 | S8011455 | O-RING | 4 |
| 724 | S8000085 | O-RING P8 | 16 |
| 725 | S8000115 | O-RING | 4 |
| 726 | S8000145 | O-RING | 2 |
| 728 | S8000245 | O-RING | 4 |
| 732 | S8000185 | O-RING | 2 |
| 774 | K9001188 | SEAL, OIL | 1 |
| 789 | S8060181 | BACK UP RING(GN04080A0)JI; 1BP18 | 2 |
| 792 | S8090350 | RING, BACK-UP | 2 |
| 806 | S4012931 | NUT HEX | 2 |
| 808 | S4015130 | NUT, HEX | 2 |
| 824 | S6500400 | RING, RETAINING | 2 |
| 885 | 2.123-00067 | PIN, VALVE PLATE | 2 |
| 886 | S5740870 | PIN, SPRING | 4 |
| 901 | S3140025 | BOLT, EYE | 2 |
| 953 | S3527906 | SCREW, SET | 2 |
| 954 | 1.120-00071 | SCREW, ADJUSTING | 2 |
| * | K9001195 | SEAL KIT, PUMP | 1 |
