Name: YANMAR B22 B22-1 B22-2 B22-2A B22-2B Main Hydraulic Pump 172141-73100 Rexroth AP2D14 For Mini Excavator Parts
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: B22 B22-1 B22-2 B22-2A B22-2B
Price: 475.00 USD
Availability: InStock

Nhà > các sản phẩm > Bộ phận máy xúc bơm thủy lực >

YANMAR B22 B22-1 B22-2 B22-2A B22-2B Main Hydraulic Pump 172141-73100 Rexroth AP2D14 For Mini Excavator Parts

Nguồn gốc:

Trung Quốc

Hàng hiệu:

Belparts

Chứng nhận:

ISO9001 / 2006/42/EC

Số mô hình:

B22 B22-1 B22-2 B22-2A B22-2B

Liên hệ với chúng tôi

Yêu cầu Đặt giá

YANMAR B22 B22-1 B22-2 B22-2A B22-2B Main Hydraulic Pump 172141-73100 Rexroth AP2D14 For Mini Excavator Parts

Chi tiết sản phẩm

Người mẫu:

YANMAR B22 B22-1 B22-2 B22-2A B22-2B

kiểu:

AP2D14

Tên một phần:

bơm thủy lực

Chất lượng:

Hậu mãi chất lượng cao

Lô hàng:

Đường biển / Đường hàng không / Chuyển phát nhanh DHL FEDEX UPS

Bảo hành:

1 năm

Số phần:

172141-73100

Ứng dụng:

máy xúc

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

1 CÁI

Giá bán

Negotiated price

chi tiết đóng gói

Bao bì bằng gỗ

Thời gian giao hàng

1~5 ngày

Điều khoản thanh toán

T/T, bảo đảm thương mại, PayPal,L/C,D/P,D/A,Western Union,MoneyGram

Khả năng cung cấp

100 chiếc / tháng

Sản phẩm liên quan

YANMAR VIO45 VIO45-5 VIO55-5B VIO55-6A VIO55-6B Main Hydraulic Pump PSVD2-21E B0600-21031 OEM 172961-73102 For Mini Excavator Parts

Nhận được giá tốt nhất

Máy đào bơm chính R55-7 R60 Bơm thủy lực 31M8-10020 31M8-10021 Cho Hyundai

Nhận được giá tốt nhất

Kubota KX161-3 KX161-3S Main Hydraulic Pump PSVL-54CG-16 B0610-54010 OEM RD538-61112 RD538-61111 RD538-61115 RD411-61113 for Mini Excavator

Nhận được giá tốt nhất

Bơm thủy lực Kubota KX161-3 KX163-5 KX165 KX183-3 Phụ tùng máy xúc mini KYB PSVL2-27CG-1 B0210-27001 RD411-61113

Nhận được giá tốt nhất

Liên hệ với chúng tôi

+86 19924616345

ron@belparts-china.com

86-020-32384870

Liên hệ ngay bây giờ

Mô tả sản phẩm

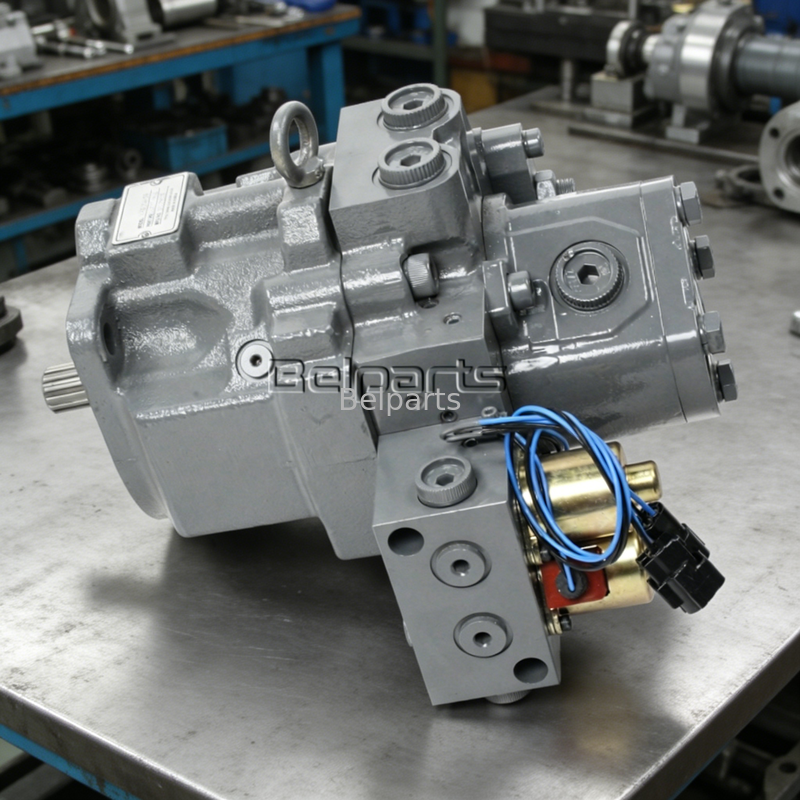

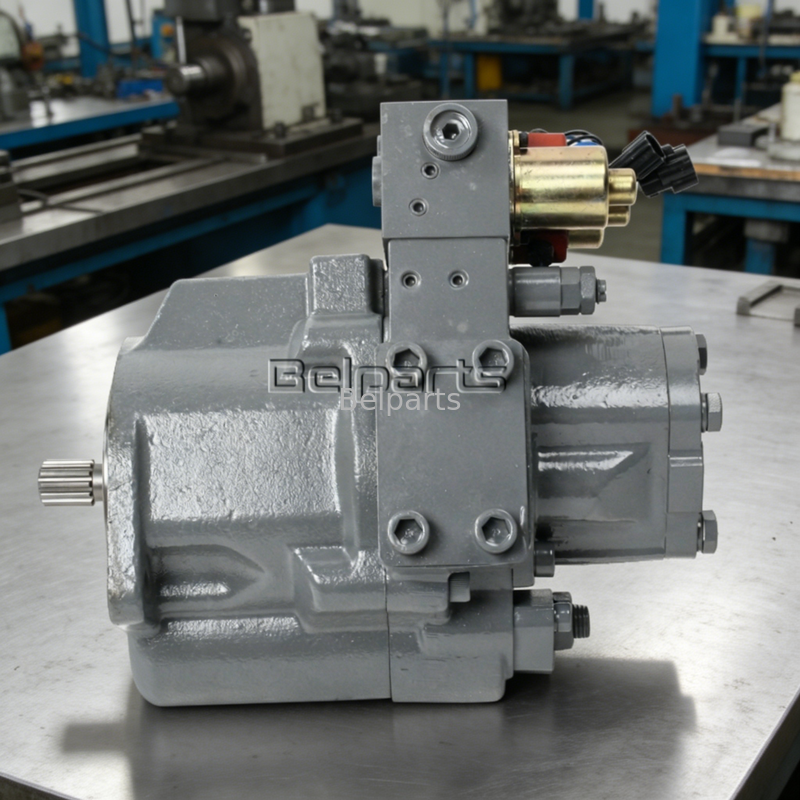

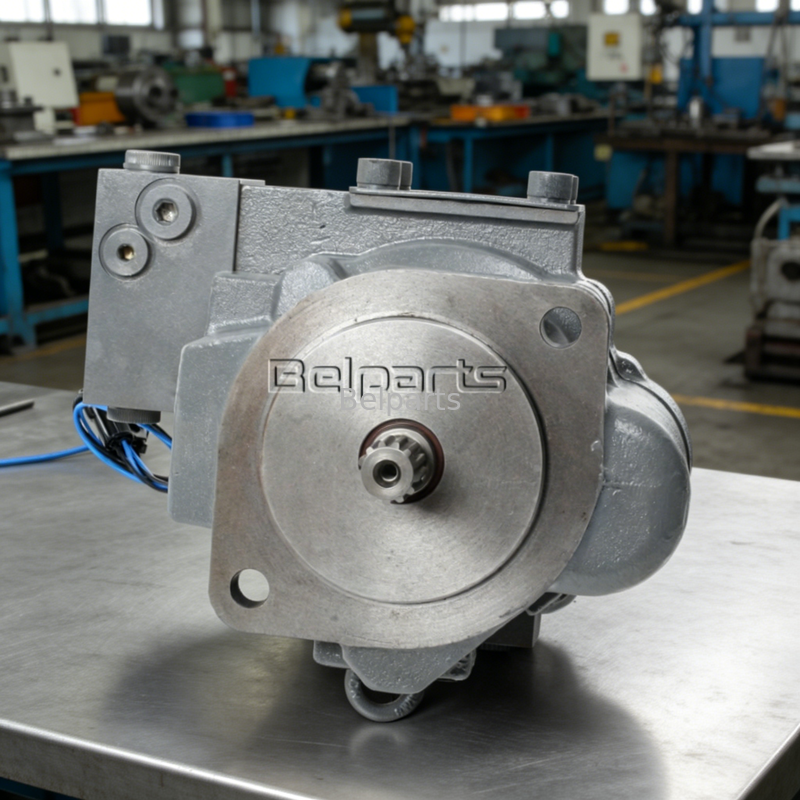

172141-73100 Rexroth AP2D14 Main Hydraulic Pump for Yanmar B22 Series Mini Excavator (Point-by-Point Layout)

1. OEM Part Number & Machine Compatibility

Yanmar OEM part number: 172141-73100
Core pump model: Rexroth Uchida AP2D14 variable displacement piston pump
Full compatible excavator models: Yanmar B22, B22-1, B22-2, B22-2A, B22-2B
Unified mounting structure fits all generation iterations of the B22 platform for direct replacement installation

2. Core Technical Specifications

Structure type: Tandem variable axial piston main pump integrated with built-in pilot gear pump
Main pump displacement: 14 cc/rev
Rated system working pressure: 24.5 MPa; preset maximum relief pressure: 31.4 MPa
Designed maximum operating rotation speed matches original engine rated speed configuration
Input shaft spline, mounting flange and all hydraulic port positions strictly follow OEM dimensional standard
Pump housing made of ductile iron; internal pistons and valve plates adopt wear-resistant quenched steel for long service lifespan

3. Internal Structure & Functional Introduction

Main piston pump supplies high-pressure hydraulic oil to drive boom, arm, bucket, travel and swing movements
Integrated pilot gear pump provides stable oil supply for pilot control circuit and system oil replenishment
Built-in power regulator automatically adjusts pump output flow according to load variation to avoid engine stalling under heavy digging conditions
Compact integrated design saves installation space inside the mini excavator hydraulic compartment

4. Product Advantages

Exact 1:1 OEM casting dimension, consistent bolt layout and oil port layout, enabling plug-and-play replacement without pipeline or chassis modification
Every finished pump undergoes complete hydraulic bench testing for pressure, flow stability and internal leakage inspection before delivery
Complete set of maintenance spare parts including overhaul seal kits, piston assemblies, swash plates and valve plates are available for individual repair replacement
Unified specification for all B22 serial variants, simplifying spare part stocking and inventory management

5. Packaging & Global Delivery Details

Input shaft and all oil ports are coated with anti-rust protective grease and sealed with dust plugs
Entire pump wrapped with moisture-proof plastic film and fixed inside export-grade solid wooden crate to prevent collision and damp damage during long-distance sea or air transit
In-stock items can be arranged for shipment within 3 to 5 working days after order confirmation
Multiple global shipping solutions available: international air express, sea LCL/FCL bulk shipment and overland truck transportation

6. FAQ

Q: Is this pump interchangeable among B22, B22-1, B22-2, B22-2A and B22-2B?
A: Yes, this AP2D14 pump with part number 172141-73100 is universally applicable for all listed B22 generation models with identical installation size and hydraulic matching parameters.
Q: Are individual repair components available for this hydraulic pump?
A: Matching overhaul seal kits, piston shoe assemblies, valve plates, swash plates and pilot gear pump spare parts are all in stock for partial overhaul maintenance.
Q: What does AP2D14 represent?
A: AP2D14 is the original Rexroth Uchida pump model code, while 172141-73100 is the exclusive OEM part number assigned by Yanmar for this assembly.
