Nguồn gốc:
Nhật Bản
Hàng hiệu:
Belparts
Chứng nhận:
2006/42/EC ISO9001
Số mô hình:
KX030-4

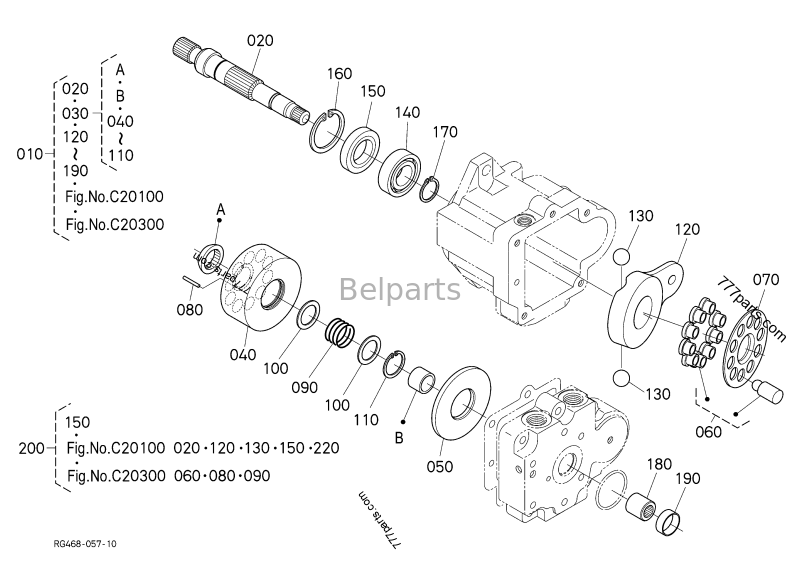

| # | Part No. | Description | Qty |
|---|---|---|---|
| 010 | RG468-61110 | PUMP,ASSY(PISTON) | 1 |
| 020 | RC348-69160 | SHAFT | 1 |
| 030 | RC348-69000 | ASSY,CYLINDER(BARREL) | 1 |
| 040 | RC348-69140 | CYLINDER,BARREL | 1 |
| 050 | RC348-69090 | PLATE VALVE | 1 |
| 060 | RC348-69100 | ASSY PISTON | 1 |
| 070 | RC348-69050 | HOLDER,SHOE | 1 |
| 080 | RB401-69180 | PIN | 3 |
| 090 | RB401-69150 | SPRING | 1 |
| 100 | RC348-69020 | RETAINER | 2 |
| 110 | 04611-00350 | CIP-CLIP INTERNAL | 1 |
| 120 | RA211-90250 | PLATE | 1 |
| 130 | RB401-69030 | PIN | 2 |
| 140 | RB401-69010 | BEARING,BALL | 1 |
| 150 | RB401-69350 | SEAL,OIL | 1 |
| 160 | 04611-00520 | CIR-CLIP INTERNAL | 1 |
| 170 | 04612-00250 | CIR-CLIP EXTERNAL | 1 |
| 180 | RC348-68990 | COUPLING | 1 |
| 190 | RB401-69190 | COLLAR | 1 |
| 200 | RB401-69400 | KIT SEAL | 1 |
A: Yes, unified mounting sizing and factory-calibrated hydraulic parameters support direct bolt-on fitting for KX030-4 with no extra adjustment or modification required.
A: PVD-0B-18P is the official Nachi original pump model designation, while RG468-61110 is the exclusive OEM part number assigned by Kubota for this complete pump assembly.
A: Corresponding full overhaul seal kits, piston shoe assemblies, valve plates, swash plates and standalone pilot gear pump spare parts are all available for partial overhaul and individual component replacement work.
